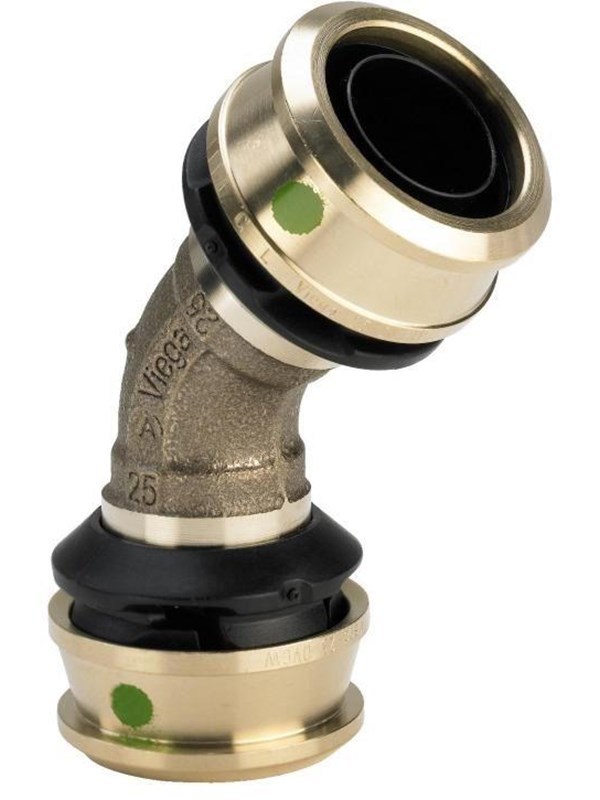

Viega Raxofix bend 45° 25 gunmetal / glossy

Press connectorsSafe and fast processing without calibration of the pipe ends through o-ring-free press technology in all dimensions. In this way, widening or calibration of the pipe-ends becomes superfluous and reduces the assembly times. The interaction between aerodynamic radii and minimal cross-section narrowings ensure the lowest pressure losses in press systems for multilayer pipes.

This allows a smaller dimensioning of drinking water installations and reduces the pipeline volume.sc-ConturAll sizes with sc-Contur - connections, which remain unpressed become visible when the system is filled. The sc-Contur is certified and fulfils the requirements of dvgw worksheet w 534, point 12.

14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 mpa-0.

65 mpa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa-0.3 mpa.MarkingGreen dot on the press connectionPipesRaxofix pe-Xc/Al/pe-Xc-dimensionally stable, oxygen-proof in acc.

With din 4726, greyRaxofix pe-Xc-flexible, blackDimensionsPress connectors and pipes-Raxofix-pe-Xc/Al/pe-Xc: d 16/20/25/32/40/50/63-Raxofix pe-Xc: d 16/20Areas of application pe-Xc/Al/pe-XcDrinking waterHeatingRainwaterCompressed airAreas of application pe-XcRainwaterDrinking waterUse of the system for application areas other than those described here must be agreed with Viega Service Center.Operating conditionsDrinking water installations-Operating temperature max. 70 °c-Operating pressure max.

1.0 mpaHeating installations-Operating temperature max. 80 °c-Operating pressure max.

1.0 mpaIrrelevant of the direction of flow, mixed installations are permitted.
