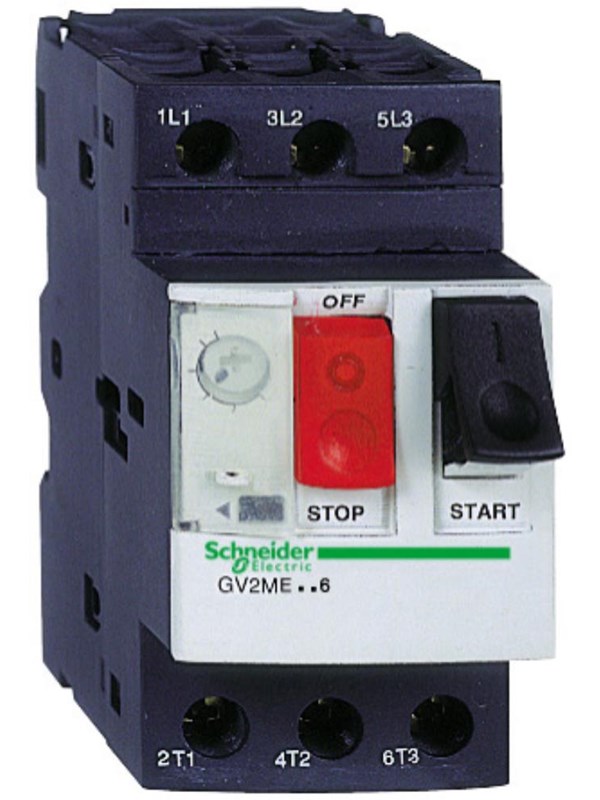

Schneider Electric Tesys gv motor circuit breaker gv2me08 thermal-magnetic 2.
Gv2me08 is a TeSys gv motor circuit breaker from Schneider electric designed for motor applications 1.1-1.5kW@400V. Les mer …
Kjøp på nett
Sist oppdatert 14. aug., 12:14. Lenkene er annonse-/samarbeidslenker – Prisguider.no kan motta provisjon ved kjøp. Det påvirker ikke prisen din eller rekkefølgen (laveste totalpris vises først).
Produktinfo
Gv2me08 is a TeSys gv motor circuit breaker from Schneider electric designed for motor applications 1.1-1.5kW@400V.
It fulfills a thermal-magnetic protection with a thermal setting range 2.5-4A, magnetic tripping at 12xIn and high breaking capacity Icu 100kA@400V. Start-stop control by push-button guaranteed for 100 000 cycles ac-3 415V.
Available worldwide, it is multi-standards certified (iec, ul, csa, ccc, eac, Marine) and Green Premium compliant (RoHs/Reach). Complete motor protection in a single device: short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution.
Light and compact, 45mm wide, for din-rail and panel mounting. Manual control with push-buttons for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (gvae, gvan, gvad) for status and tripping signalling.
For large industrial or building lv distribution networks thanks to a high 100kA breaking capacity. Power connections with screw clamp terminals, also available with springs and lugs terminals.
