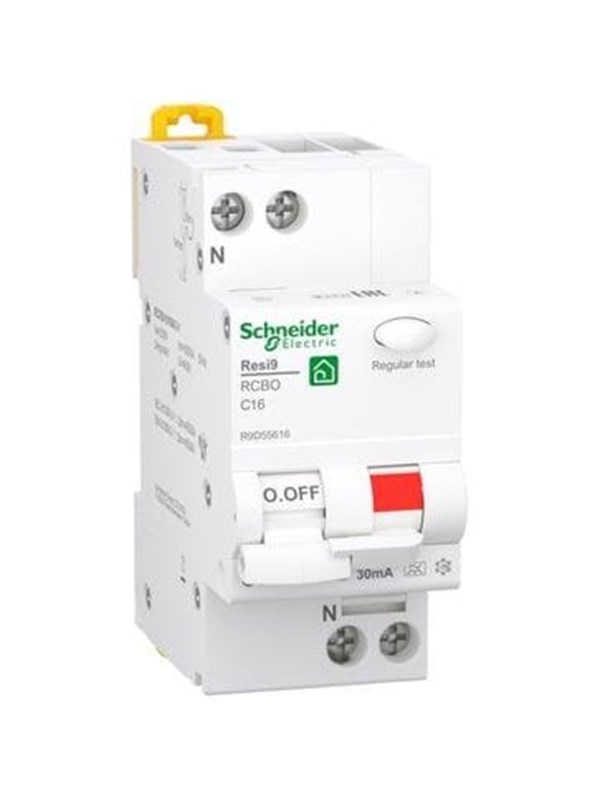

Schneider Electric Resi9 XP RCBO/combination switch 1PN C-characteristic 16A 6kA 30mA class A 36mm
This Resi9 is a modular residual current breaker with overcurrent protection (rcbo). It is a 1P+n circuit breaker with 1 protected pole and 16A In rated current and c tripping curve. The earth leakage… Les mer …
Kjøp på nett
Sist oppdatert 14. aug., 12:12. Lenkene er annonse-/samarbeidslenker – Prisguider.no kan motta provisjon ved kjøp. Det påvirker ikke prisen din eller rekkefølgen (laveste totalpris vises først).
Produktinfo
This Resi9 is a modular residual current breaker with overcurrent protection (rcbo). It is a 1P+n circuit breaker with 1 protected pole and 16A In rated current and c tripping curve. The earth leakage protection class is a type with a sensitivity of 30mA.
The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according en/iec 61009-2-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.
It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. This product is compliant with en/iec 61009-2-1 standard. It has an electrical endurance going up to 7500 cycles and a mechanical endurance going up to 20000 cycles.
The Ue operational voltage is 230vac. It is din rail mountable. The width in 9mm pitches is 4.
The product color is white (ral9003). The dimensions are (w) 36mm x (h) 82mm x (d) 70.5mm.
The weight is 186g. It has an ip20 degree of protection (as per iec/en 60529 standard) and becomes ip40 once in modular enclosure. The operating temperature is from -25°c to -60°c.
