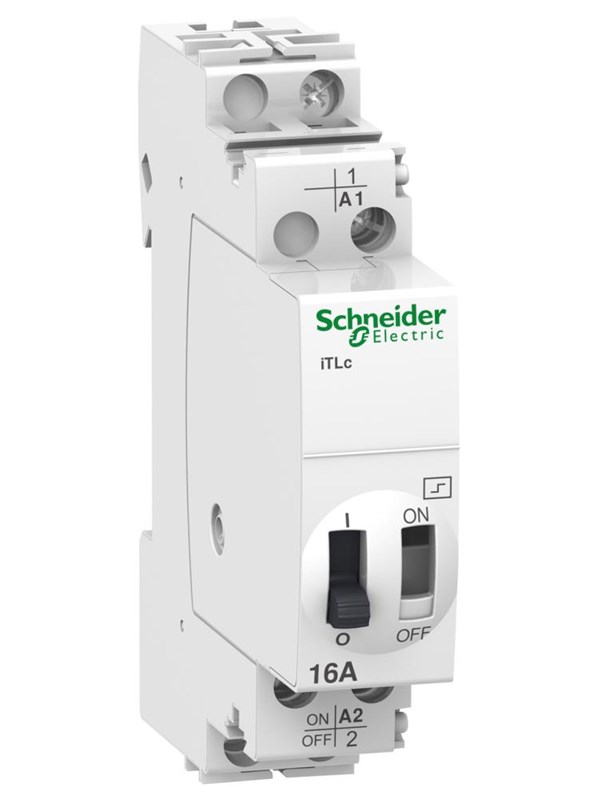

Schneider Electric Acti9 impulse relay itlc - 1p - 1no - 16a - coil 230...240 v
This Acti9 itlc is a modular and reliable impulse relay. This 1P device has 1 normally open contact. The rated current is 16A, 24vac to 250vac operating voltage and it operates with 230vac to 240vac c… Les mer …
Kjøp på nett
Sist oppdatert 14. aug., 12:14. Lenkene er annonse-/samarbeidslenker – Prisguider.no kan motta provisjon ved kjøp. Det påvirker ikke prisen din eller rekkefølgen (laveste totalpris vises først).
Produktinfo
This Acti9 itlc is a modular and reliable impulse relay. This 1P device has 1 normally open contact. The rated current is 16A, 24vac to 250vac operating voltage and it operates with 230vac to 240vac control voltage.
Electrical endurance goes up to 200000 cycles for ac-21 or 100000 cycles for ac-22. The switching frequency is 100 switching operations/day or 5 switching operations/minute. The duration of the command order should be between 50ms to 1s.
The degree of protection is ip20 and ip40 in an enclosure. It is din rail mountable. It is mainly used for lighting control applications.
It allow centralized control of a group of impulse relays whilst keeping local individual control of each impulse relay. This product is compliant with iec/en 60669-1, iec/en 60669-2-2.
