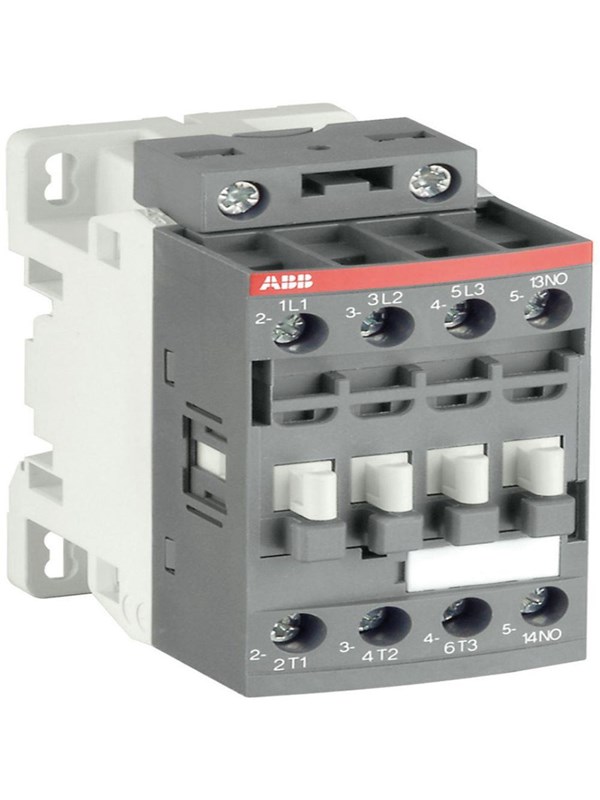

ABB Af09-30-10-11 24-60vac-dc contactor
Af09 contactors are used for controlling power circuits up to 690 v ac and 220 v dc. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. Af... Les mer …
Kjøp på nett
Sist oppdatert 14. aug., 12:13. Lenkene er annonse-/samarbeidslenker – Prisguider.no kan motta provisjon ved kjøp. Det påvirker ikke prisen din eller rekkefølgen (laveste totalpris vises først).
Produktinfo
Af09 contactors are used for controlling power circuits up to 690 v ac and 220 v dc. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. Af...
Contactors include an electronic coil interface accepting a wide control voltage Uc min.... Uc max. Only four coils cover control voltages between 24...
500 v 50/60 Hz or 20...500 v dc. Af contactors can manage large control voltage variations.
One coil can be used for different control voltages used worldwide without any coil change. Af contactors have built-in surge protection and do not require additional surge suppressors. The af...
Series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex l of iec 60947-5-1. N.
c. Mirror contacts compliant with Annex f of iec 60947-4-1) - Control circuit: ac or dc operated - Accessories: a wide range of accessories is available. Note: af..
-30-..-11 not suitable for a direct control by plc-output. Af..
-30-..-11 contactor type available in some countries: please consult your Abb representative.
